Building a local Kubernetes cluster and provisioning DevOps services with Terraform

Motivation

In the last months I’ve worked on several projects involving Machine Learning and DevOps. Two of them — a recommendation system for job positions and a Speech-To-Speech system (STT/ASR + TTS) — plus a personal Real-Time Machine Learning project running in my free time made me feel the same friction over and over: I needed a local Kubernetes cluster with real-time updates before pushing repos to production.

So I started using k3d and Skaffold locally, and then went further and rebuilt a complete local Kubernetes stack with Rancher, ArgoCD, GitLab, and LocalStack — all installed declaratively so it would survive an OS switch.

Initially I scripted the installs as .sh files (into bash/). That works on Linux but breaks on Windows. So I dove into Terraform. After understanding the basics (providers, resources, variables, outputs, the terraform init / plan / apply / destroy lifecycle), I rebuilt the same stack as an OS-agnostic Terraform module — files in terraform/. No more translating .sh to .bat; the abstraction layer guarantees reproducibility on Linux, Windows, and macOS.

Heads up: plan for at least 16 GB of RAM. My local k3d cluster with the full stack (GitLab + Rancher + ArgoCD + LocalStack) was pulling ~10 GB, mostly GitLab. You can disable GitLab components you don’t need via values.yaml to slim it down.

Architecture

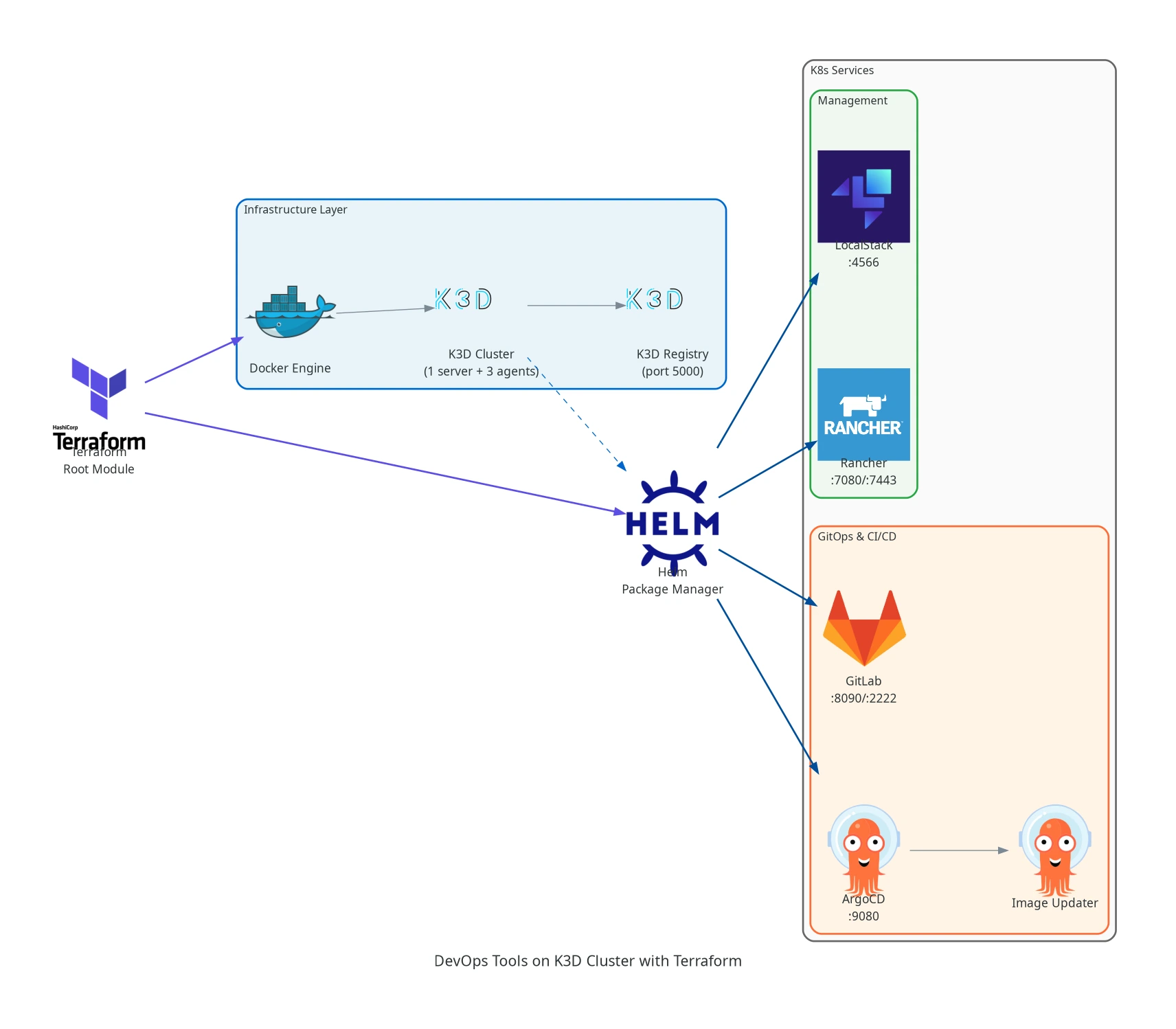

Terraform sits at the root, provisions the Docker / k3d infrastructure layer, then hands off to Helm to install the management (LocalStack, Rancher) and GitOps + CI/CD (GitLab, ArgoCD + Image Updater) service groups. Single command provisions everything; single command tears it down.

DevOps stack

Component	Role
k3d cluster	1 server + 3 agents with a local Docker registry
ArgoCD	GitOps continuous delivery
ArgoCD Image Updater	Auto-bumps image tags in Git when new container versions land
GitLab	Complete DevOps platform with CI/CD
Rancher	Kubernetes management UI for cluster observability
LocalStack	AWS service emulator for local development

Hardware footprint

Component	Specification
RAM	64 GB
CPU	8 cores (modern x86_64)
Storage	2 TB NVMe SSD

Minimum: 16 GB RAM if you trim GitLab via values.yaml. 32 GB recommended for the full stack without OOM pressure.

Installation requirements

• k3d
• Docker
• kubectl
• Helm
• Terraform

Installation steps

1. Clone the repo

git clone https://github.com/rafaelcoelho1409/K3D

2. Enter the Terraform folder

cd K3D/terraform

3. Initialize Terraform

terraform init

4. Create the k3d cluster

Provision the cluster first to avoid connectivity issues during the rest of the apply:

terraform apply -target=module.k3d_cluster

5. Deploy all services

terraform apply

Warning: several minutes. Make sure RAM headroom is healthy before this.

6. Access the services

Service	URL
Rancher	http://localhost:7443
GitLab	http://localhost:8090
ArgoCD	http://localhost:9080
LocalStack	http://localhost:4566
k3d Registry	http://localhost:5000

7. Retrieve credentials

Rancher — username root, password:

kubectl get secret gitlab-gitlab-initial-root-password -n ${NAMESPACE} \
  -o jsonpath='{.data.password}' 2>/dev/null | base64 -d \
  || echo "(not ready yet, check in a few minutes)"

ArgoCD — username admin, password:

kubectl -n argocd get secret argocd-initial-admin-secret \
  -o jsonpath="{.data.password}" | base64 -d

Results

I connected my Real-Time Machine Learning project to this stack, so:

1. Push the repo to local GitLab
2. GitLab CI builds Docker images and pushes them to the k3d Registry
3. ArgoCD Image Updater detects new images on the registry and triggers ArgoCD
4. ArgoCD applies the Helm charts to the cluster and monitors resource health in real time

The cluster running with all services deployed — every layer of the diagram above, live on a single machine.

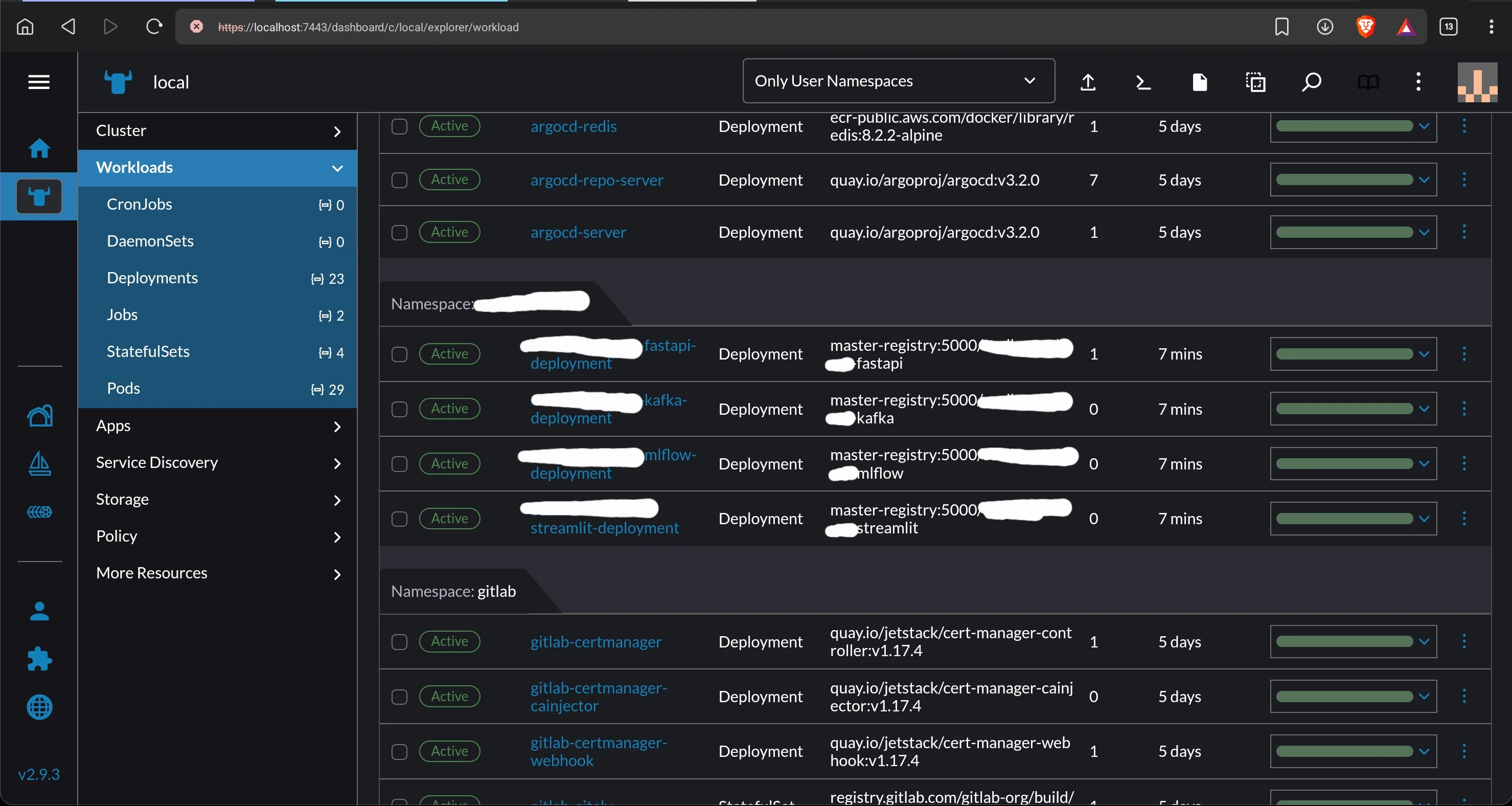

All services accessible at their local ports — Rancher, GitLab, ArgoCD, LocalStack — the same loop that would run in production, on a single laptop.

The main purpose: a complete local CI/CD flow connecting GitLab CI with ArgoCD, with Kubernetes resource health monitored live in Rancher — and all of it disposable in one terraform destroy.

Source on GitHub →
